Description
Shoe and boot cleaner flush to the floor - the recessed solution for shoe and equipment cleaning for outdoor installations
This shoe and boot washer is an optimal solution for the quick and comfortable cleaning of dirty football shoes, work shoes, hiking shoes, combat boots or sports shoes. This robust concrete shoe washing machine is an ideal solution for highly frequented outdoor facilities. Thanks to its modular design, it can be easily adapted to the specific needs of every conceivable area of application. Whether at military bases, sports fields, police schools, schools or farms: This shoe cleaner ensures perfectly clean shoes without spilling dirt into changing rooms and other interior areas.
We offer the Shoe and boot cleaner flush to the floor with 4, 8, 12, 16 and 24 washing places (see options below). Depending on the model selected, these are mounted on one or both sides. The standardised tap connections on the wash handle allow a free choice of taps and hand wash brushes (see accessories). In addition, a support bracket mounted on the handle ensures a comfortable and secure footing when cleaning shoes.
Image: Shoe and boot cleaner flush to the floor with up to 24 cleaning stations.
Depending on the model, the built-in shoe washing system consists of 1-4 washing basins made of formwork-smooth, reinforced concrete, which are embedded into the floor at ground level. Shaft linings for PVC pipes (NW 100) are supplied for water drainage, which can be positioned either left or right. The individual tubs are provided with 2-3 galvanized steel gratings. These can be easily removed for easy cleaning of the boot washer.
Water is supplied via a wash handle made of hot-dip galvanised steel profiles (100 x 50 mm). Depending on the selected version, it is equipped with 4-24 tap connections (1/2"). In addition, the shoe cleaner has a hose connection (3/4"/ LW 16). The fresh water is fed into the washing system via a welded, hot-dip galvanized connection sleeve (1"). As with the water drain, a left or right-hand installation can also be selected for the connection.
Notes:
- Please let us know if the connection and drain should be installed left or right (see drawing)
- Pipes and washing frame should be flushed before initial use
- Max. line pressure is 5 bar
- Install fine filters in the supply line
- The line withstands an operating pressure of max. 6 bar. If an increased pressure is present, a pressure reducing valve must be installed by the customer
- If there is a risk of frost, the pipe must be emptied
- The prices do not include preparatory work on site, installation and transport. Installation must be carried out by a local plumber/construction company
- Faucets are not included. Under accessories you will find a number of possible taps and washing brushes
- Before installation, foundation / support, water connection and sewerage connection with sludge collector must be installed by the customer
Option:
Shoe and boot cleaner flush to the floor, 4 washing stations, one-sided
1 washing basin 2-grate-concrete element type "Shoe and boot cleaner flush to the floor"
2 gratings (removable)
1 wash handle 4er one-sided
4 connections for taps
1 lateral hose connection with hose screw connection 3/4"
Weight: 990 kg
Faucets and hand wash brushes are available as accessories.
Option:
Shoe and boot cleaner flush to the floor, 6 washing stations, one-sided
1 washing basin 3-grate-concrete element type "Shoe and boot cleaner flush to the floor"
3 gratings (removable)
1 wash handle 6er one-sided
6 connections for taps
1 lateral hose connection with hose screw connection 3/4"
Weight: 1'485 kg
Faucets and hand wash brushes are available as accessories.
Option:
Shoe and boot cleaner flush to the floor, 8 washing stations, double-sided
1 washing basin 2-grate-concrete element type "Shoe and boot cleaner flush to the floor"
2 gratings (removable)
1 wash handle 8er double-sided
8 connections for taps
1 lateral hose connection with hose screw connection 3/4"
Weight: 998 kg
Faucets and hand wash brushes are available as accessories.
Option:
Shoe and boot cleaner flush to the floor, 8 washing stations, double-sided
2 washing basin 2-grate-concrete element type "Shoe and boot cleaner flush to the floor"
4 gratings (removable)
1 wash handle 8er one-sided
8 connections for taps
1 lateral hose connection with hose screw connection 3/4"
Weight: 1'970 kg
Faucets and hand wash brushes are available as accessories.
Option:
Shoe and boot cleaner flush to the floor, 12 washing stations, double-sided
1 washing basin 3-grate-concrete element type "Shoe and boot cleaner flush to the floor"
3 gratings (removable)
1 wash handle 12er double-sided
12 connections for taps
1 lateral hose connection with hose screw connection 3/4"
Weight: 2'956 kg
Faucets and hand wash brushes are available as accessories.
Option:
Shoe and boot cleaner flush to the floor, 12 washing stations, one-sided
2 washing basin 2-grate-concrete element type "Shoe and boot cleaner flush to the floor"
6 gratings (removable)
1 wash handle 12er one-sided
12 connections for taps
1 lateral hose connection with hose screw connection 3/4"
Weight: 2'956 kg
Faucets and hand wash brushes are available as accessories.
Option:
Shoe and boot cleaner flush to the floor, 16 washing stations, double-sided
2 washing basin 2-grate-concrete element type "Shoe and boot cleaner flush to the floor"
4 gratings (removable)
1 wash handle 16er double-sided
16 connections for taps
1 lateral hose connection with hose screw connection 3/4"
Weight: 1'986 kg
Faucets and hand wash brushes are available as accessories.
Option:
Shoe and boot cleaner flush to the floor, 24 washing stations, souble-sided
2 washing basin 3-grate-concrete element type "Shoe and boot cleaner flush to the floor"
6 gratings (removable)
1 wash handle 24er double-sided
24 connections for taps
1 lateral hose connection with hose screw connection 3/4"
Weight: 2'980 kg
Faucets and hand wash brushes are available as accessories.
Technical data
Case: Concrete washing trough
Grate: hot-dipped grates
Dimensions: version 4 cleaning stations, single-sided
Dimensions: 235 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 2 grids: 221 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 4 pieces one-sided: 234 cm x 120 cm (width x height)
Weight: 990 kg
Weight of concrete element: 953 kg
Weight of the washing hanger: 37 kg
Item number: STW-00451
Dimensions: version 6 cleaning stations, single-sided
Dimensions: 334 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 3 grids: 320 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 6 pieces double-sided: 334 cm x 120 cm (width x height)
Weight: 1485 kg
Weight of concrete element: 1430 kg
Weight of the washing hanger: 55 kg
Item number: STW-00452
Dimensions: version 8 cleaning stations, double-sided
Dimensions: 235 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 2 grids: 320 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 8 pieces double-sided: 234 cm x 120 cm (width x height)
Weight: 998 kg
Weight of concrete element: 953 kg
Weight of the washing hanger: 45 kg
Item number: STW-00453
Dimensions: version 8 cleaning stations, single-sided
Dimensions: 456 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 2 grids: 221 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 8 pieces one-sided: 454 cm x 120 cm (width x height)
Weight: 1970 kg
Weight of concrete element: 2 x 953 kg
Weight of the washing hanger: 64 kg
Item number: STW-00454
Dimensions: version 12 cleaning stations, double-sided
Dimensions: 334 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 3 grids: 320 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 12 pieces double-sided: 334 cm x 120 cm (width x height)
Weight: 1498 kg
Weight of concrete element: 1430 kg
Weight of the washing hanger: 68 kg
Item number: STW-00455
Dimensions: version 12 cleaning stations, single-sided
Dimensions: 654 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 3 grids: 320 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 12 pieces one-sided: 654 cm x 120 cm (width x height)
Weight: 2956 kg
Weight of concrete element: 2 x 1430 kg
Weight of the washing hanger: 96 kg
Item number: STW-00456

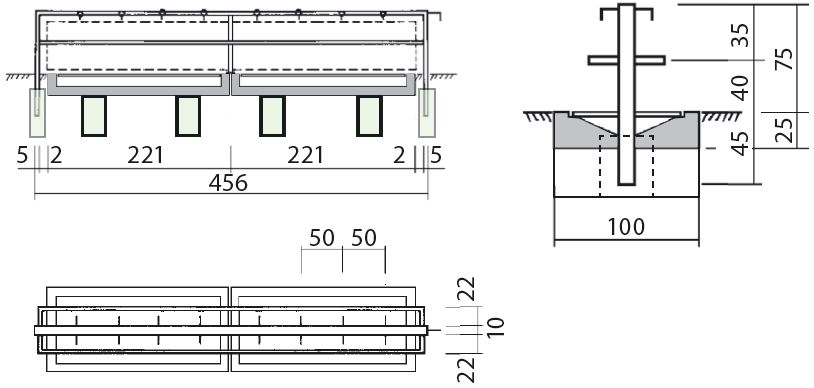

Dimensions: version 16 cleaning stations, double-sided
Dimensions: 456 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 2 grids: 221 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 16 pieces one-sided: 454 cm x 120 cm (width x height)
Weight: 1986 kg
Weight of concrete element: 2 x 953 kg
Weight of the washing hanger: 80 kg
Item number: STW-00457
Dimensions: version 24 cleaning stations, double-sided
Dimensions: 654 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 3 grids: 320 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 24 pieces one-sided: 654 cm x 120 cm (width x height)
Weight: 2980 kg
Weight of concrete element: 2 x 1430 kg
Weight of the washing hanger: 120 kg
Item number: STW-00458
Water inflow: Water connection sleeve 1", optionally right or left mounted
Water outflow: PVC socket NW 100, optionally mounted on right or left side
Max. Pipe pressure: 5 bar
Max. Operating pressure: 6 bar
Electrical supply: no electrical supply necessary
Warranty: 2 years
|
Blue Level Cleaning Systems
